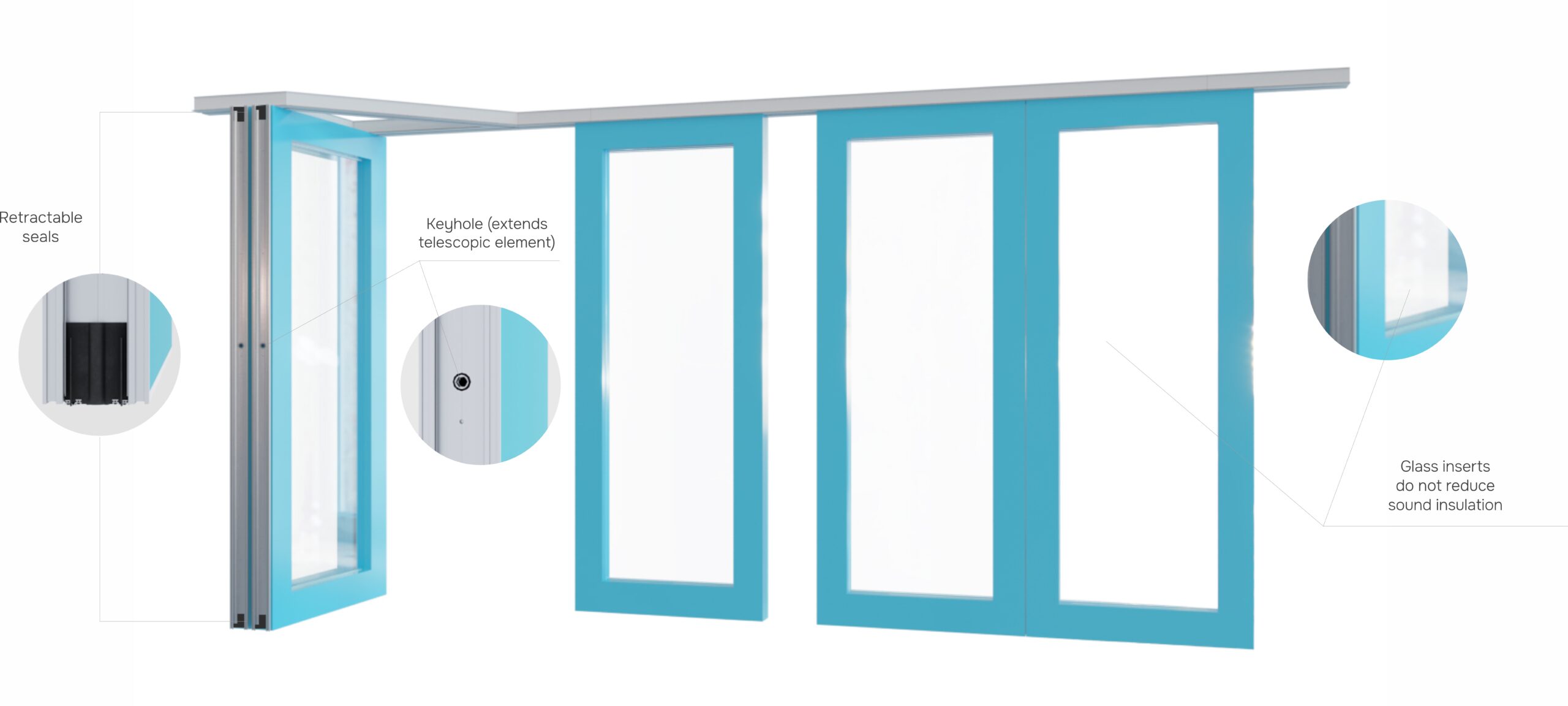

Glass walls

  • Mechanical and semi-automatic control
  • Whole glass surface
  • Available in fire-resistant glass
  • Reduced vertical and horizontal imposts, maximum glass area
Order now
CERTIFICATES DWG/PDF

Specifications

thickness of safety glass

8, 10, 12 mm


Sound insulations

46 - 49 dB


WEIGHT

25-65 kg/m2


Panel height

2,500 - 4,500 mm

Technical specifications
Switch to table view
Optimal 50 Optimal 110 Transpalace 80 Transpalace 100
Panel thickness 50 mm 110 mm 80 mm 100 mm
Panel height 2000 - 3500 mm 2000 - 4000 mm 1500 - 3500 mm 1500 - 3500 mm
Panel width 600 - 1240 mm 600 - 1240 mm 600 - 1240 mm 600 - 1240 mm
Frame construction aluminium / wood aluminium / wood aluminium aluminium
Fire safety Optional non flaimable MDF A2 Optional non flaimable MDF A2 10 - 20 mm, insulated safety glass carried by the construction 8 mm, safety glass carried by the construction
Sound insulation 32, 33 dB 45, 49, 51 dB 40 dB 46 dB
Rw Weight (depending on sound insulation value) approx. 40 kg/m2 approx. 65-70 kg/m2 approx. 50 kg/m2 approx. 65 kg/m2
Operation of pressure sleeves manual Manual or semi-automatic control manual or electrical manual or electrical
Door single door in panel single door in panel single door in panel or fixed single door single door in panel or fixed single door
  • Optimal 50
  • Panel thickness 50 mm
  • Panel height 2000 - 3500 mm
  • Panel width 600 - 1240 mm
  • Frame construction aluminium / wood
  • Fire safety Optional non flaimable MDF A2
  • Sound insulation 32, 33 dB
  • Rw Weight (depending on sound insulation value) approx. 40 kg/m2
  • Operation of pressure sleeves manual
  • Door single door in panel
  • Optimal 110
  • Panel thickness 110 mm
  • Panel height 2000 - 4000 mm
  • Panel width 600 - 1240 mm
  • Frame construction aluminium / wood
  • Fire safety Optional non flaimable MDF A2
  • Sound insulation 45, 49, 51 dB
  • Rw Weight (depending on sound insulation value) approx. 65-70 kg/m2
  • Operation of pressure sleeves Manual or semi-automatic control
  • Door single door in panel
  • Transpalace 80
  • Panel thickness 80 mm
  • Panel height 1500 - 3500 mm
  • Panel width 600 - 1240 mm
  • Frame construction aluminium
  • Fire safety 10 - 20 mm, insulated safety glass carried by the construction
  • Sound insulation 40 dB
  • Rw Weight (depending on sound insulation value) approx. 50 kg/m2
  • Operation of pressure sleeves manual or electrical
  • Door single door in panel or fixed single door
  • Transpalace 100
  • Panel thickness 100 mm
  • Panel height 1500 - 3500 mm
  • Panel width 600 - 1240 mm
  • Frame construction aluminium
  • Fire safety 8 mm, safety glass carried by the construction
  • Sound insulation 46 dB
  • Rw Weight (depending on sound insulation value) approx. 65 kg/m2
  • Operation of pressure sleeves manual or electrical
  • Door single door in panel or fixed single door
  • Panel thickness
  • Panel height
  • Panel width
  • Frame construction
  • Fire safety
  • Sound insulation
  • Rw Weight (depending on sound insulation value)
  • Operation of pressure sleeves
  • Door
  • Panel thickness
  • Panel height
  • Panel width
  • Frame construction
  • Fire safety
  • Sound insulation
  • Rw Weight (depending on sound insulation value)
  • Operation of pressure sleeves
  • Door
  • Panel thickness
  • Panel height
  • Panel width
  • Frame construction
  • Fire safety
  • Sound insulation
  • Rw Weight (depending on sound insulation value)
  • Operation of pressure sleeves
  • Door
  • Panel thickness
  • Panel height
  • Panel width
  • Frame construction
  • Fire safety
  • Sound insulation
  • Rw Weight (depending on sound insulation value)
  • Operation of pressure sleeves
  • Door
  • Panel thickness
  • Panel height
  • Panel width
  • Frame construction
  • Fire safety
  • Sound insulation
  • Rw Weight (depending on sound insulation value)
  • Operation of pressure sleeves
  • Door

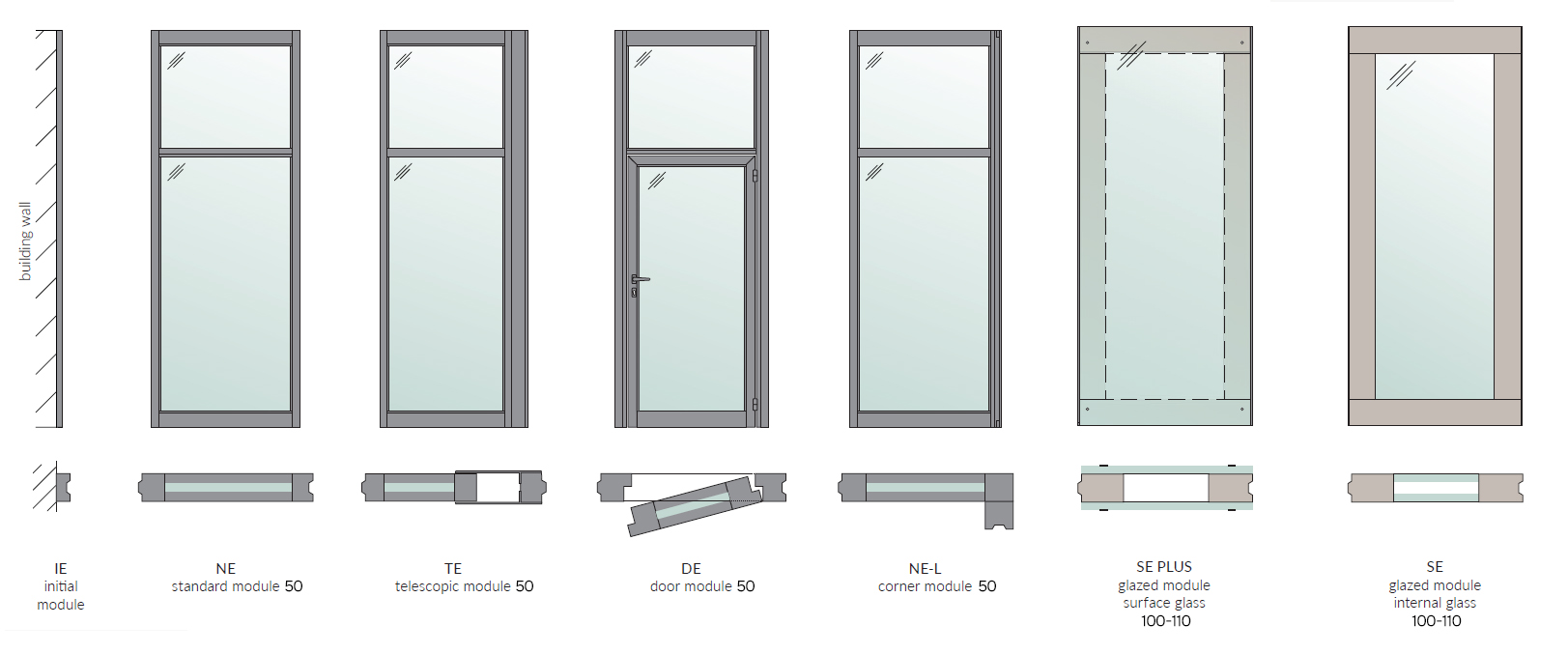

Standart modules of the systems
Parking options
  • image

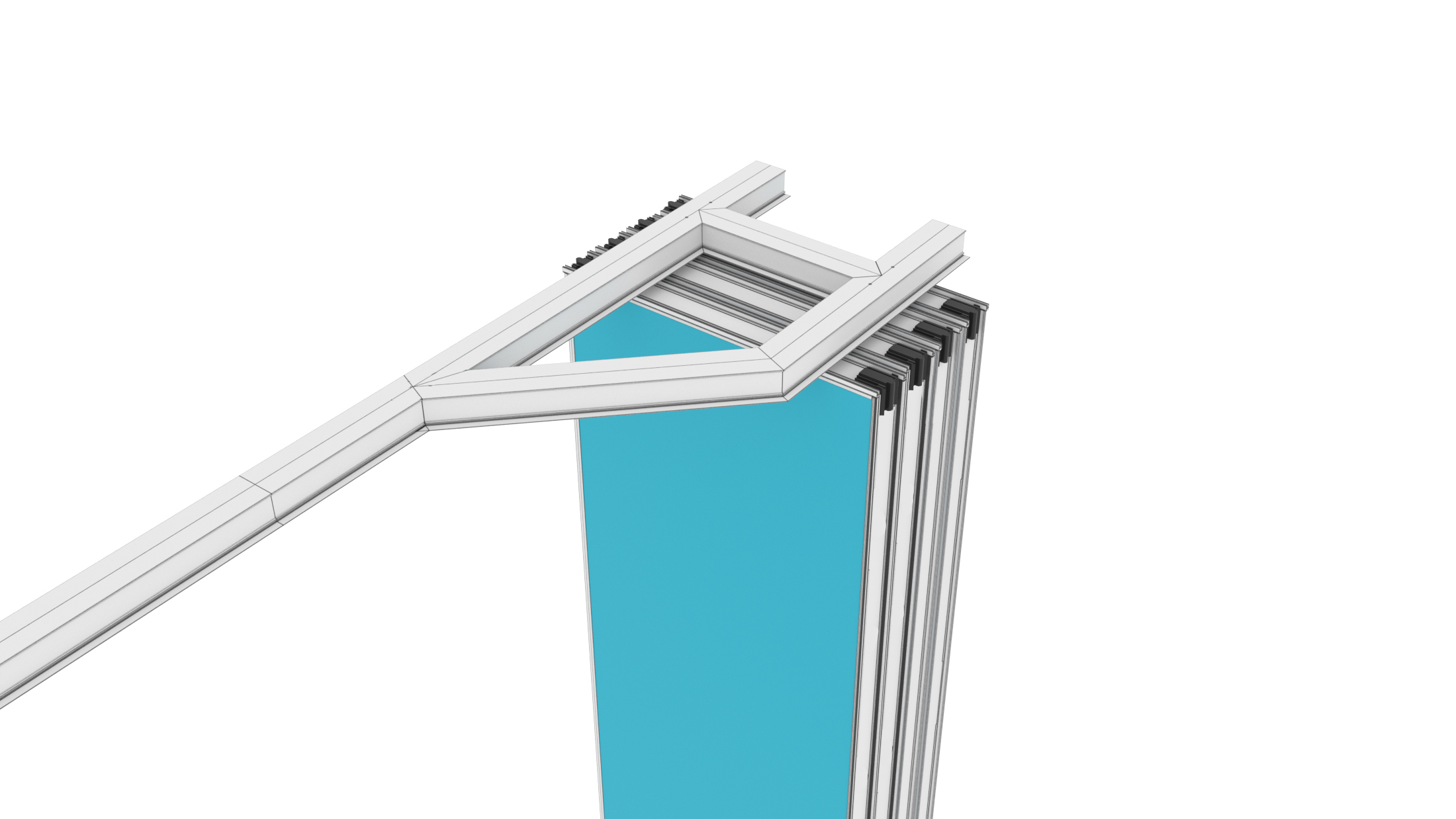

    Type of parking FG
  • image

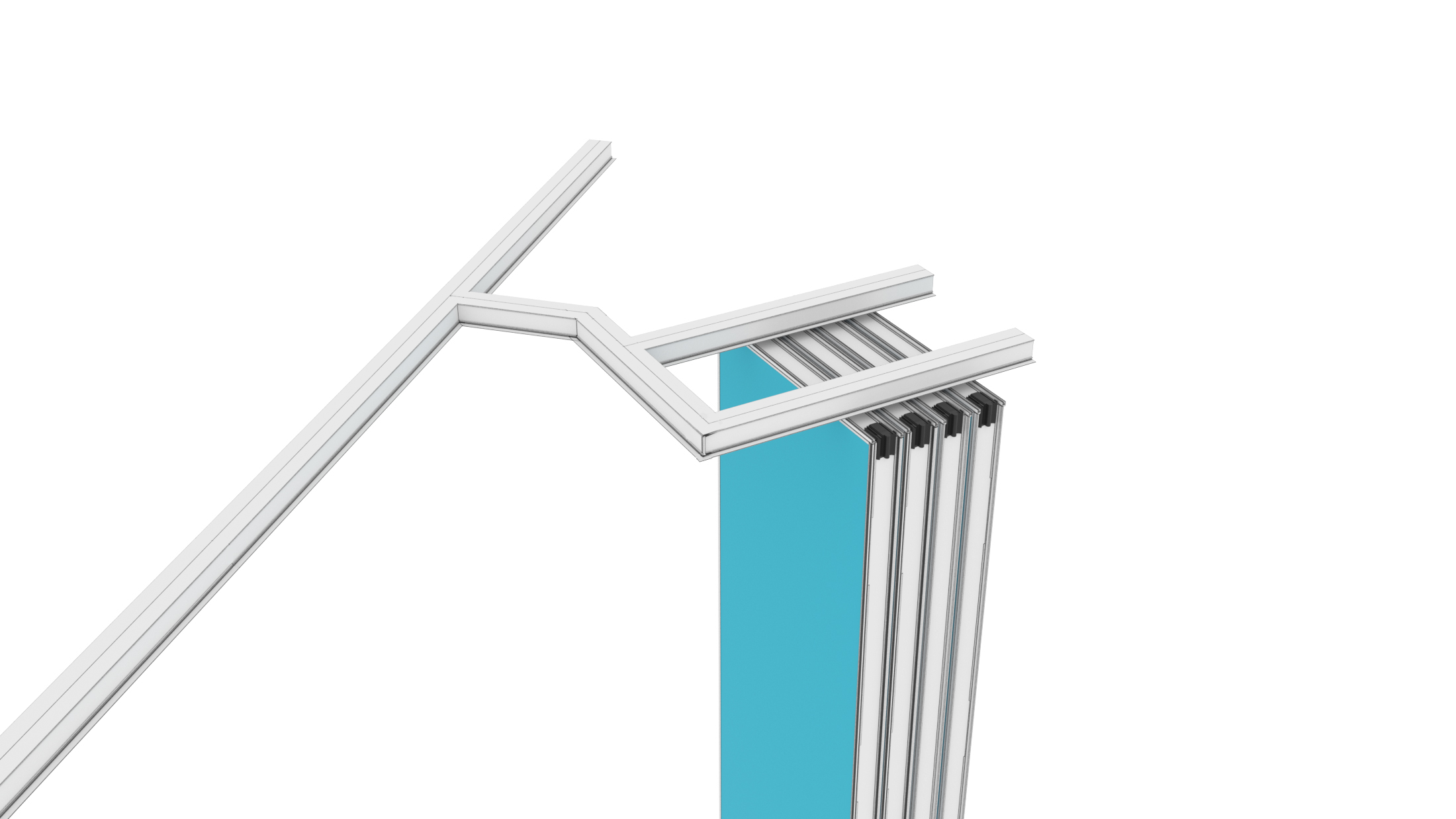

    Type of parking CG 8
  • image

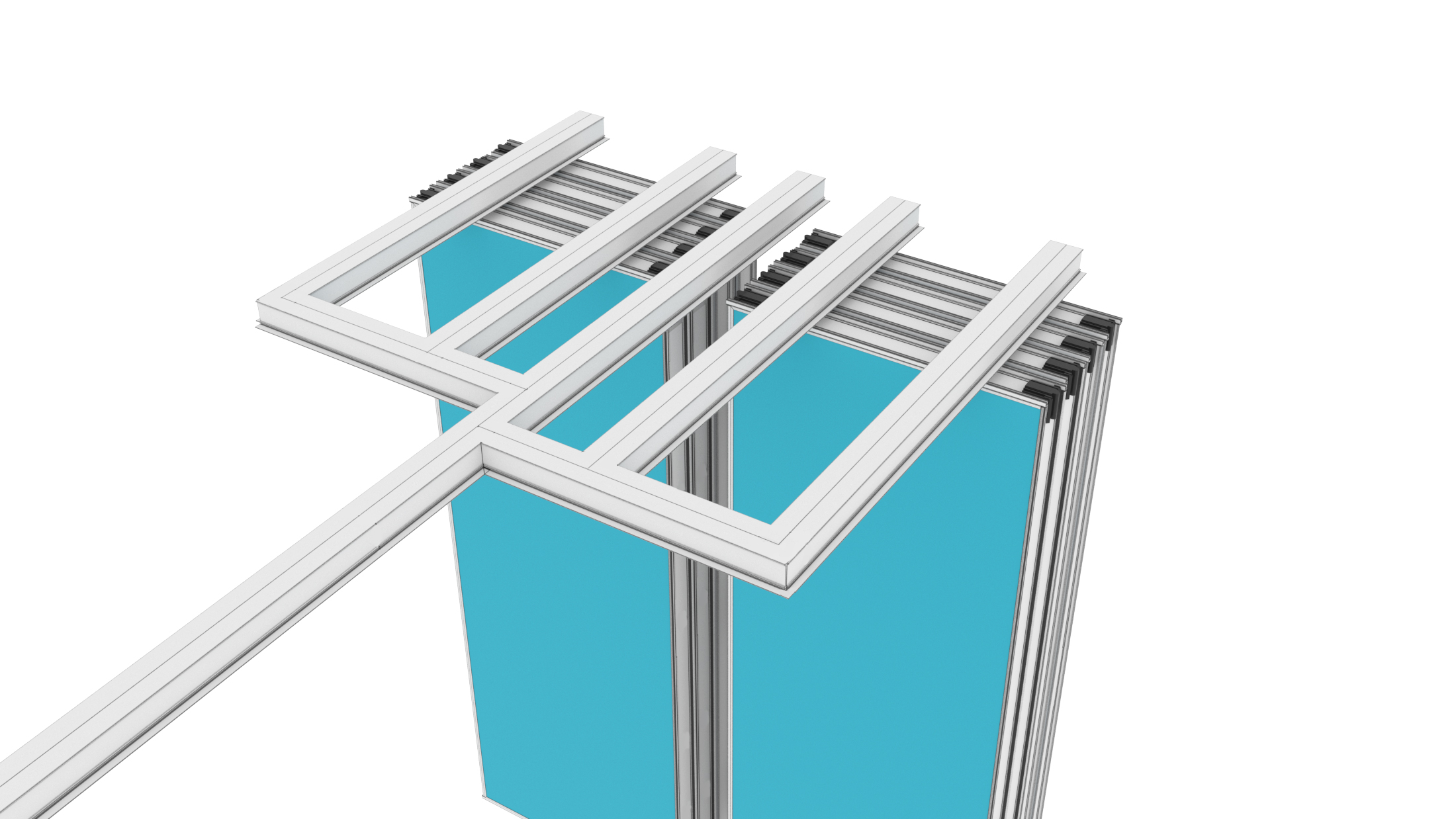

    Type of parking CG 7
  • image

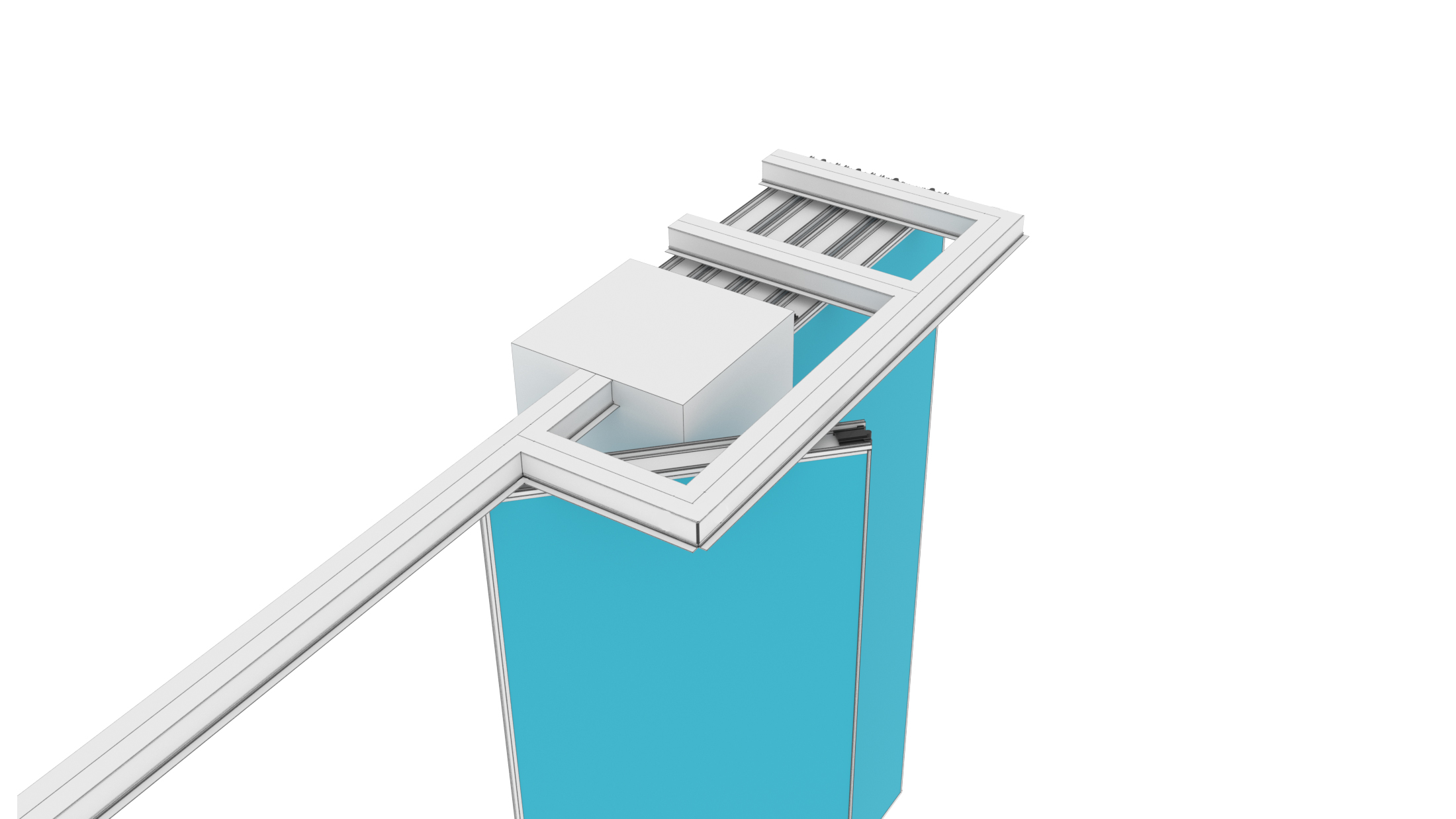

    Type of parking CG 6
  • image

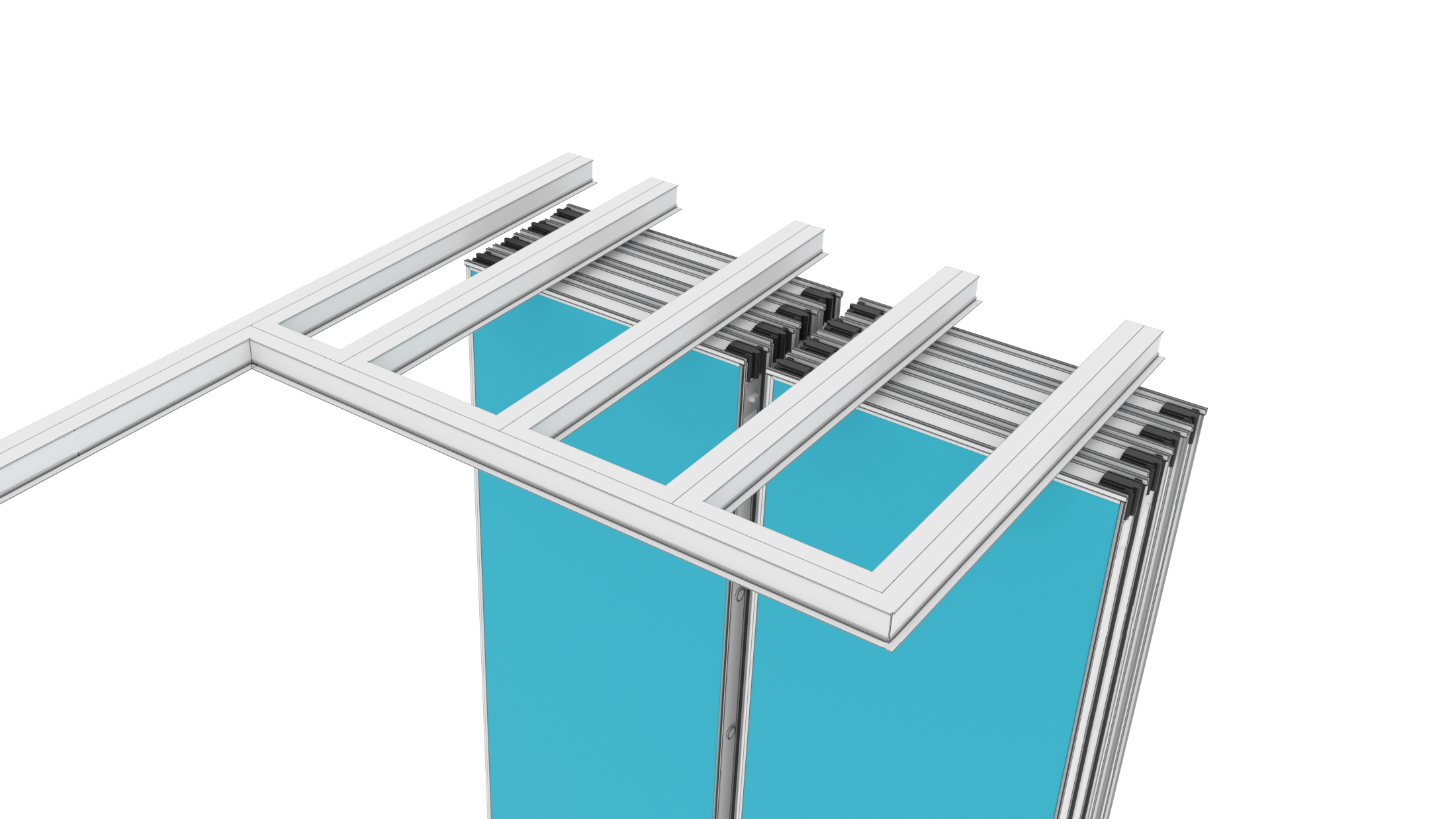

    Type of parking CG 5
  • image

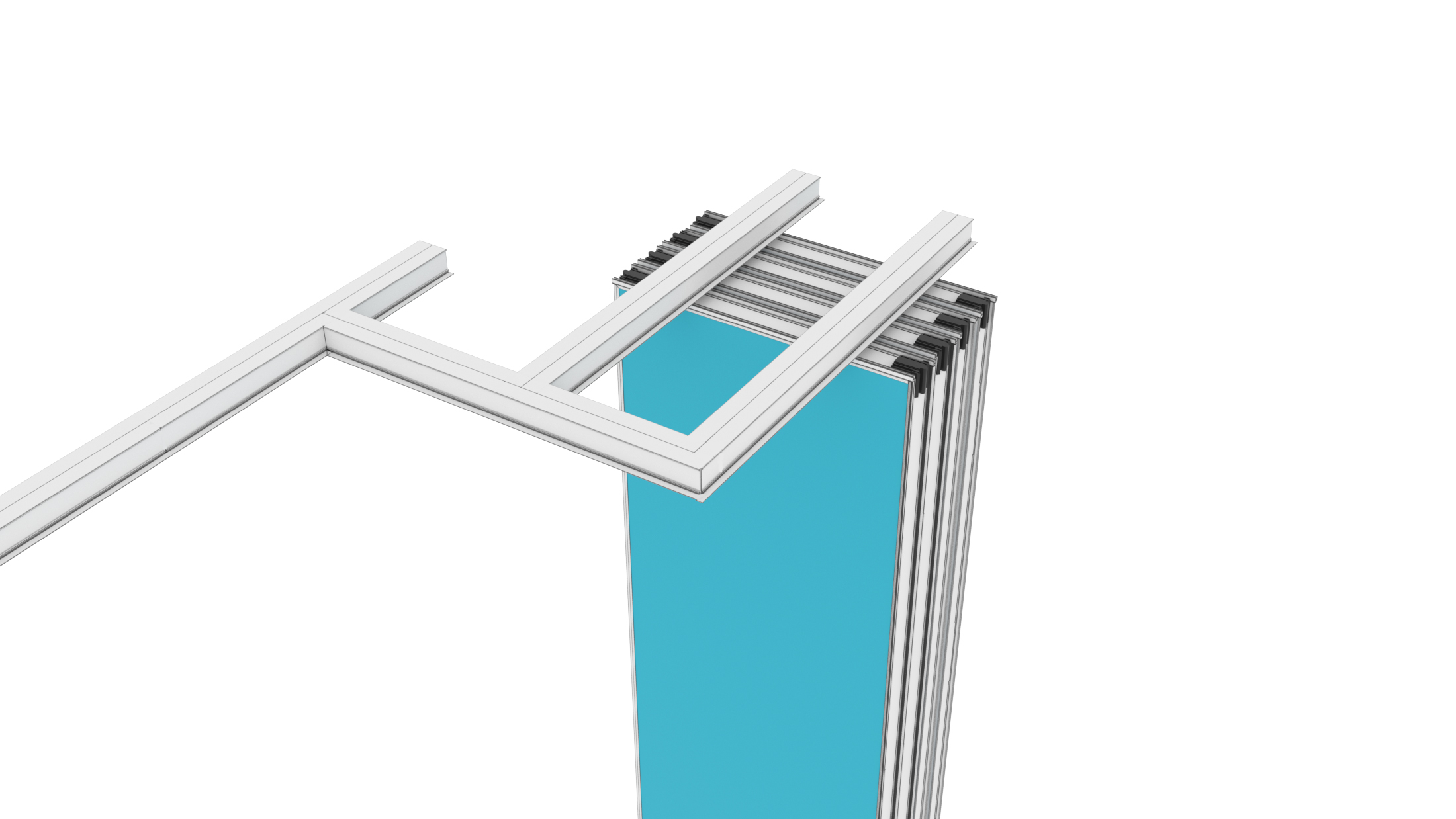

    Type of parking CG 4
  • image

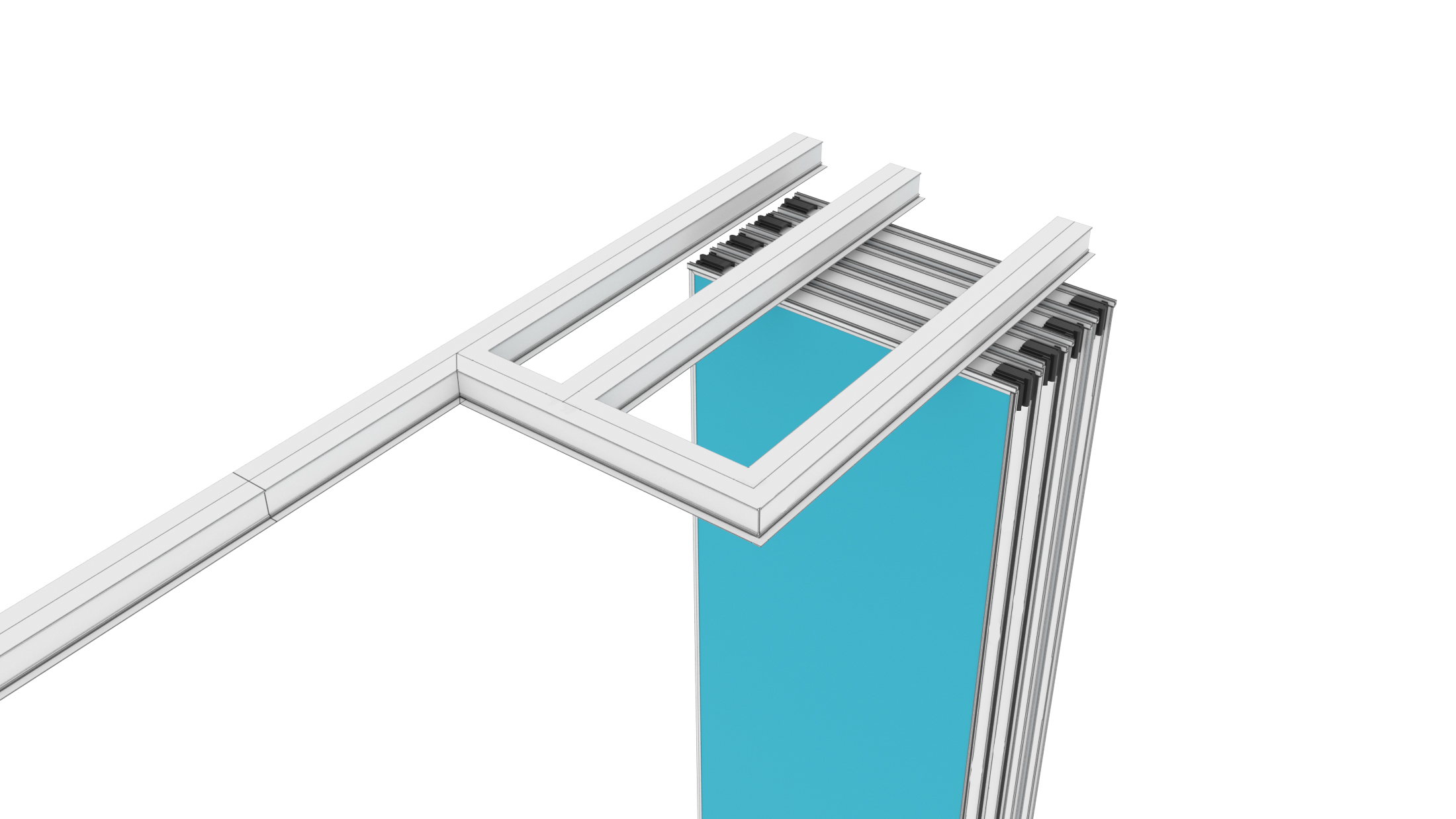

    Type of parking CG 3
  • image

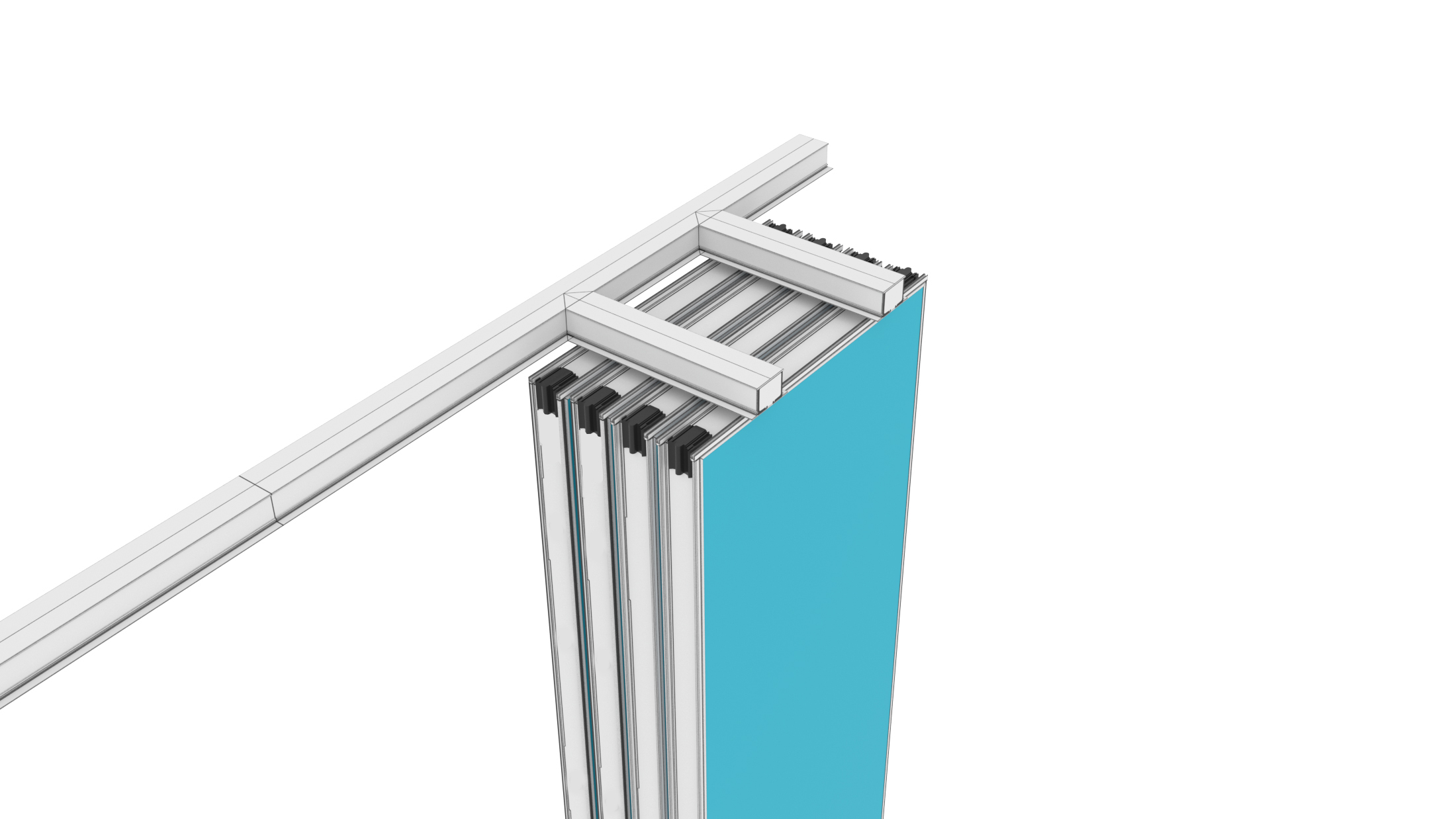

    Type of parking CG 2
  • image

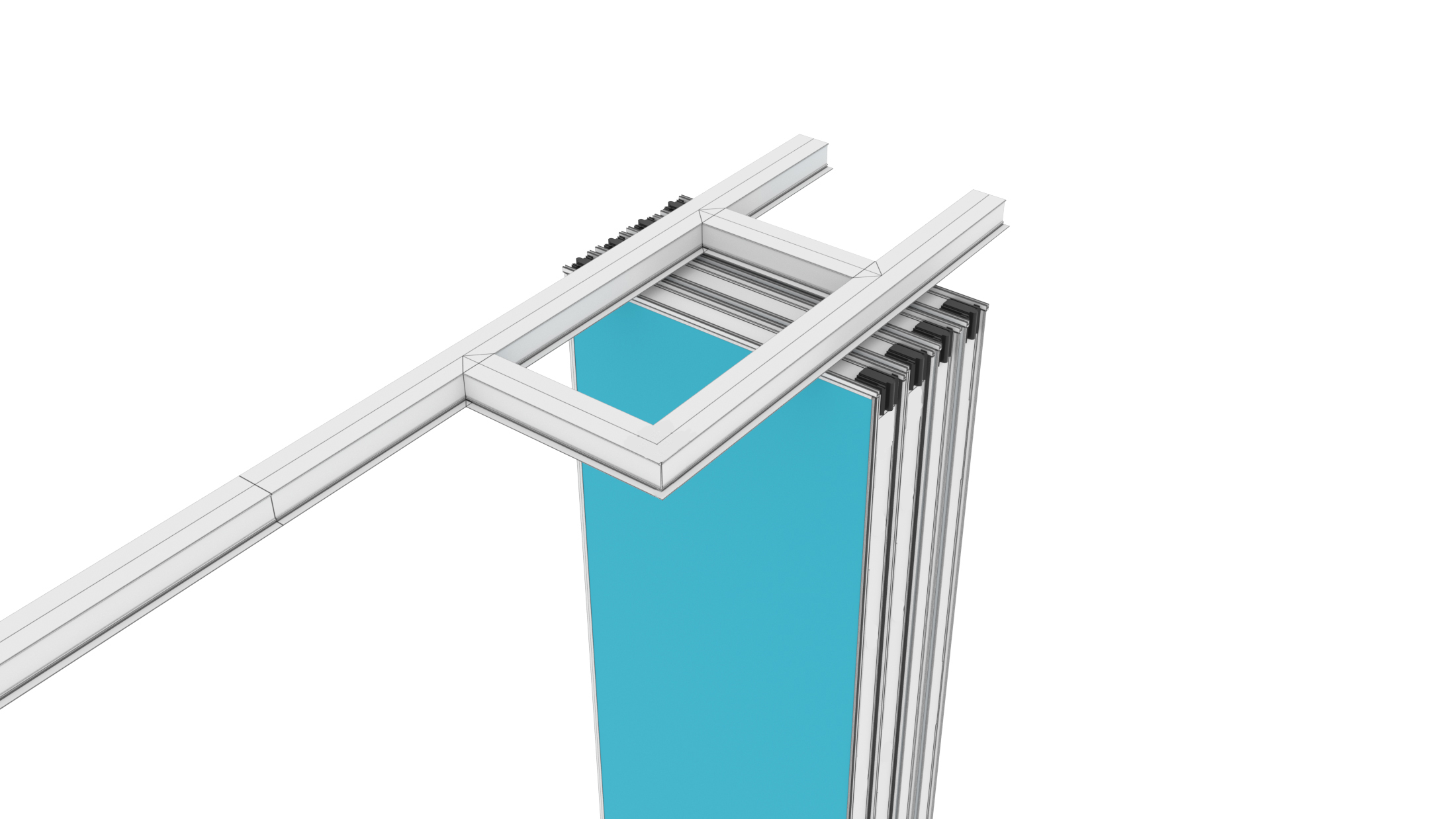

    Type of parking CG 1
  • image

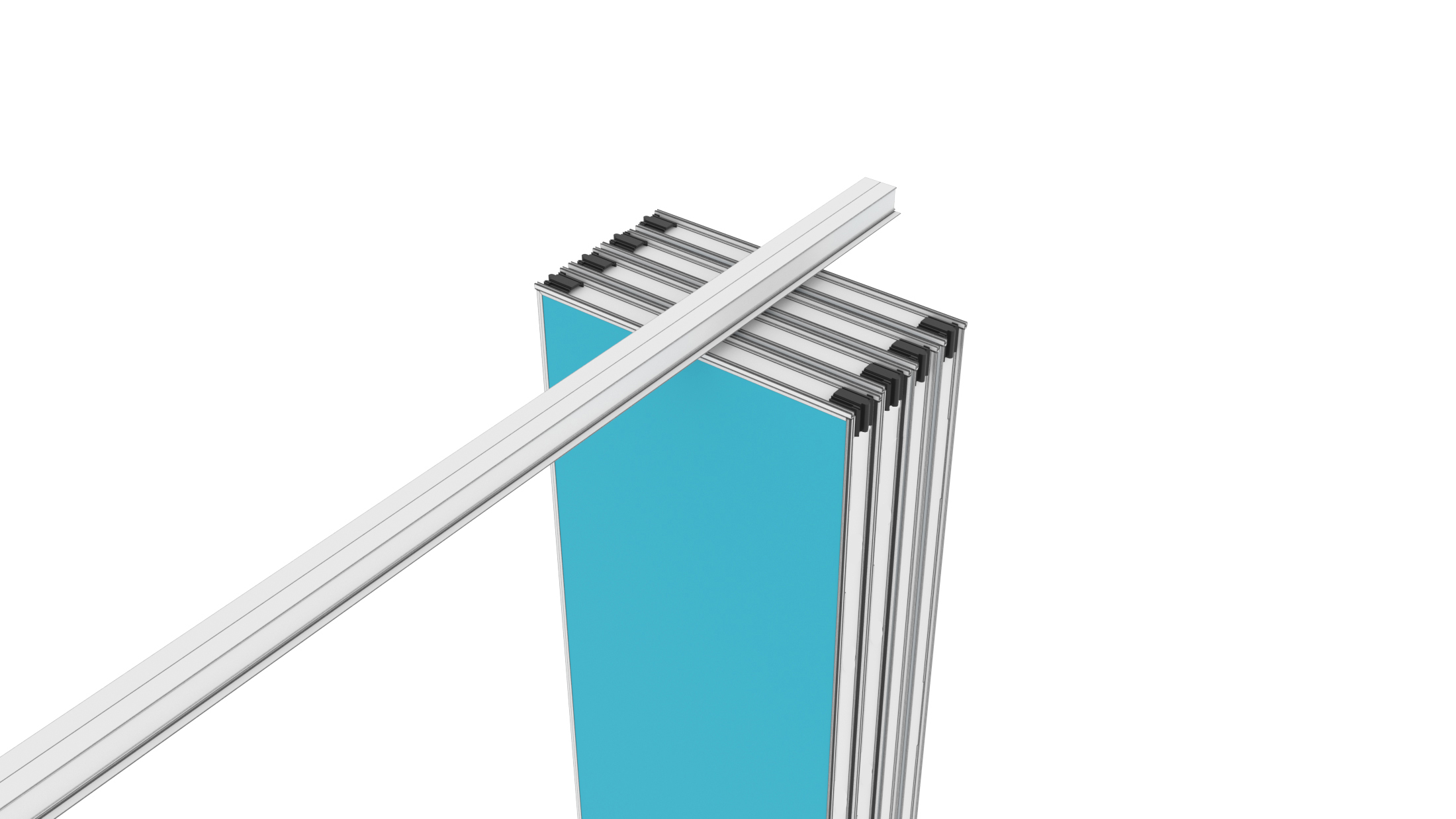

    Type of parking OG
Track options
  • image

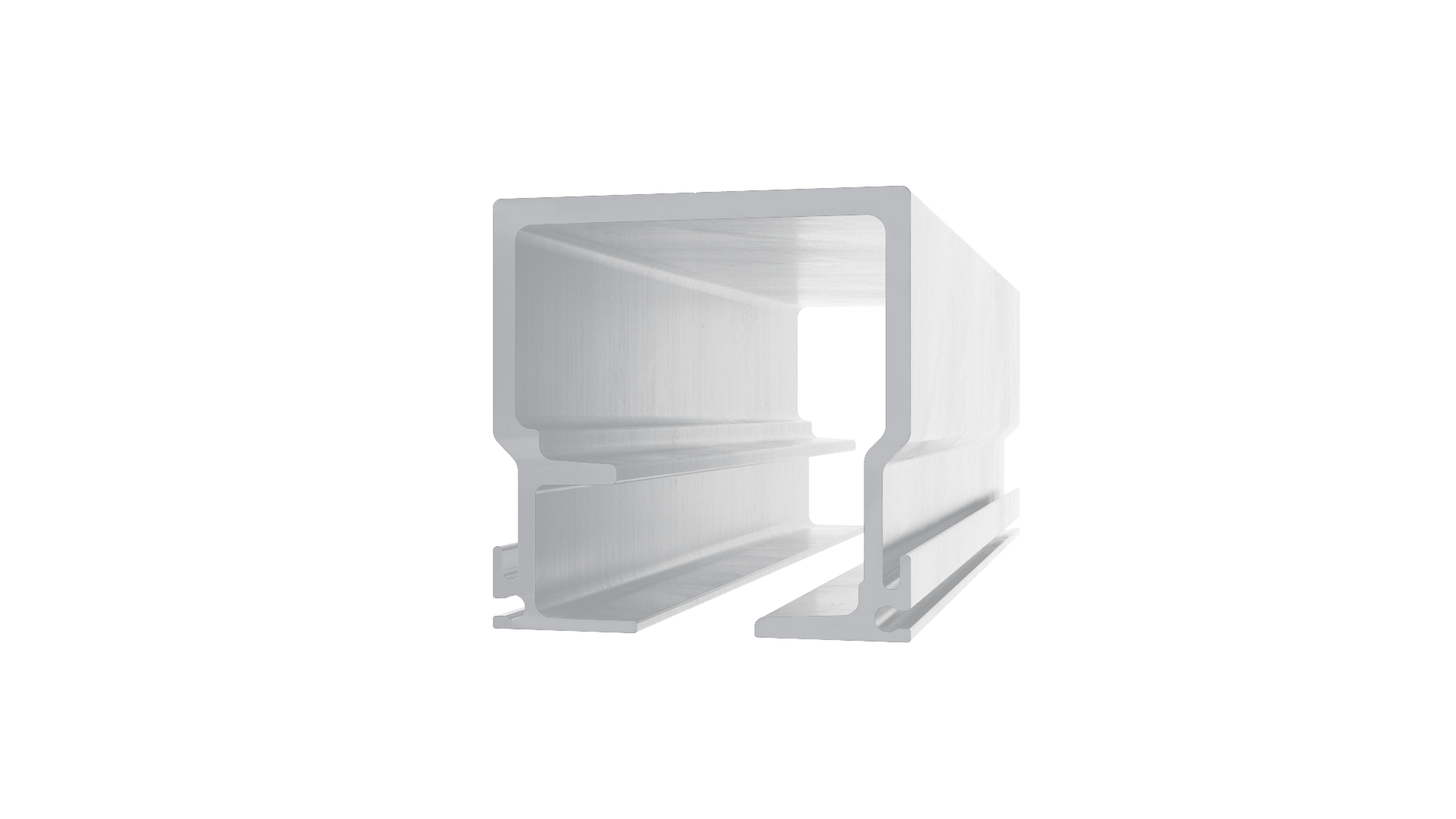

    Track 1
  • image

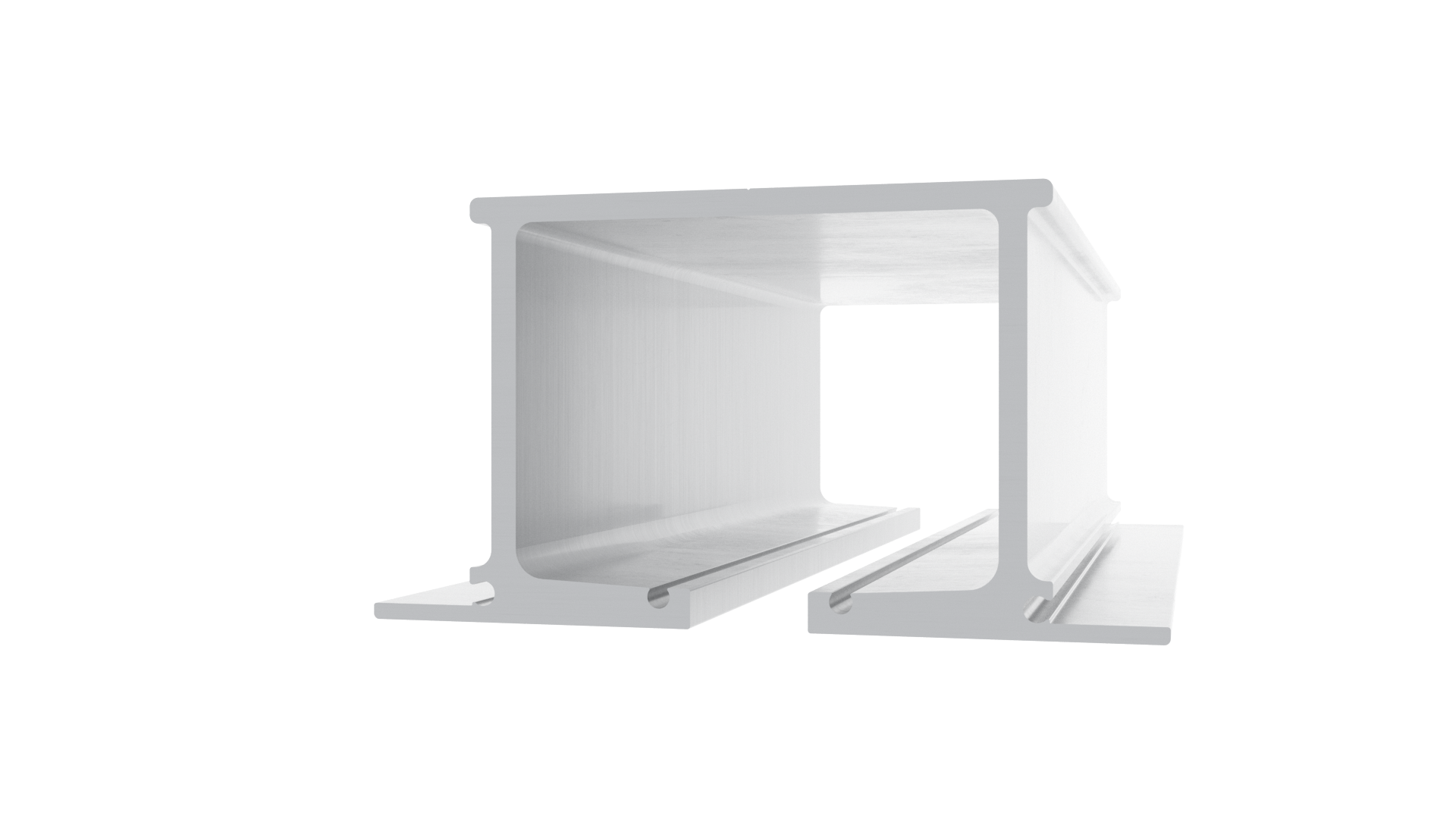

    Track 2 C
  • image

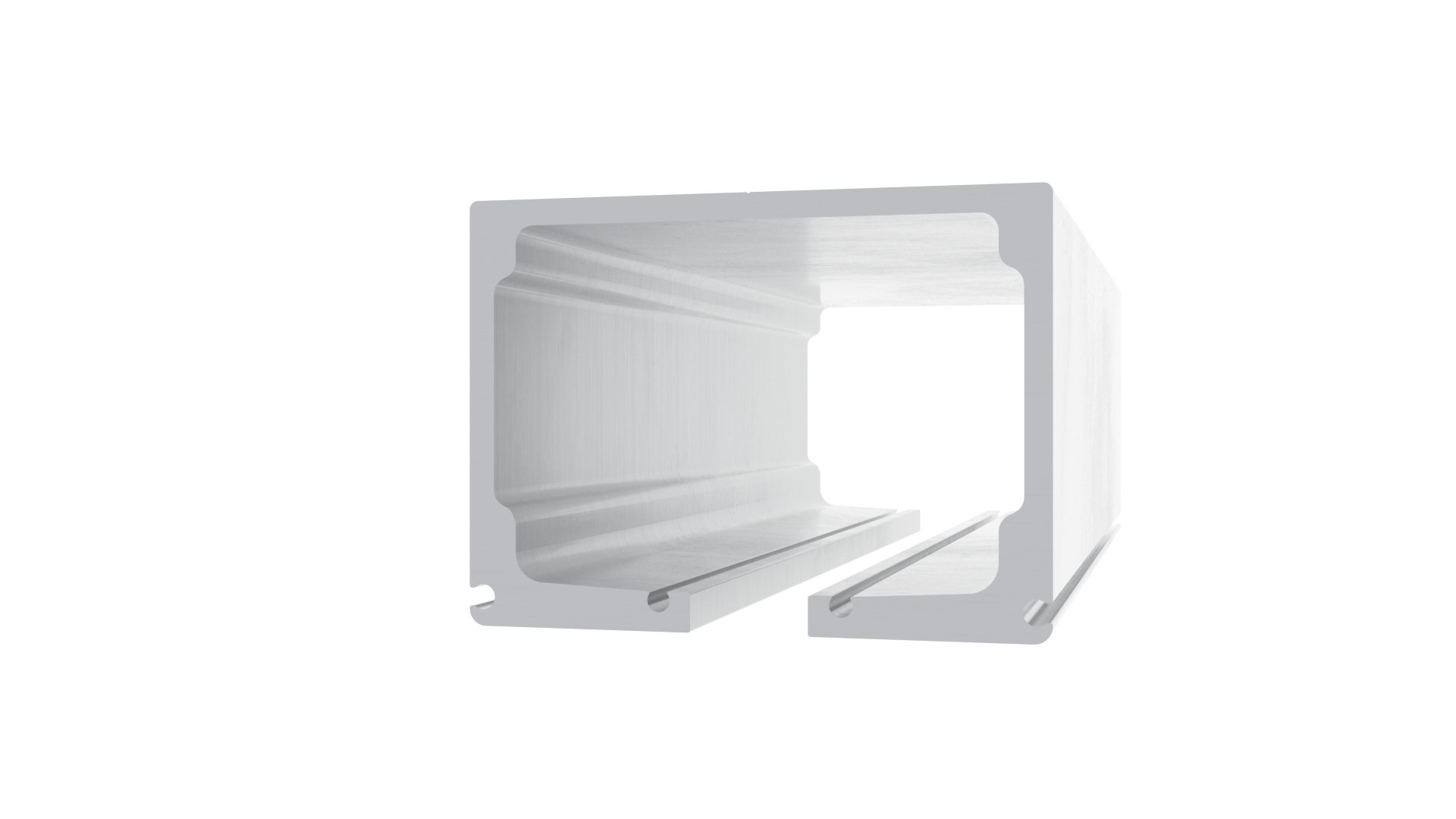

    Track 2 NC
  • image

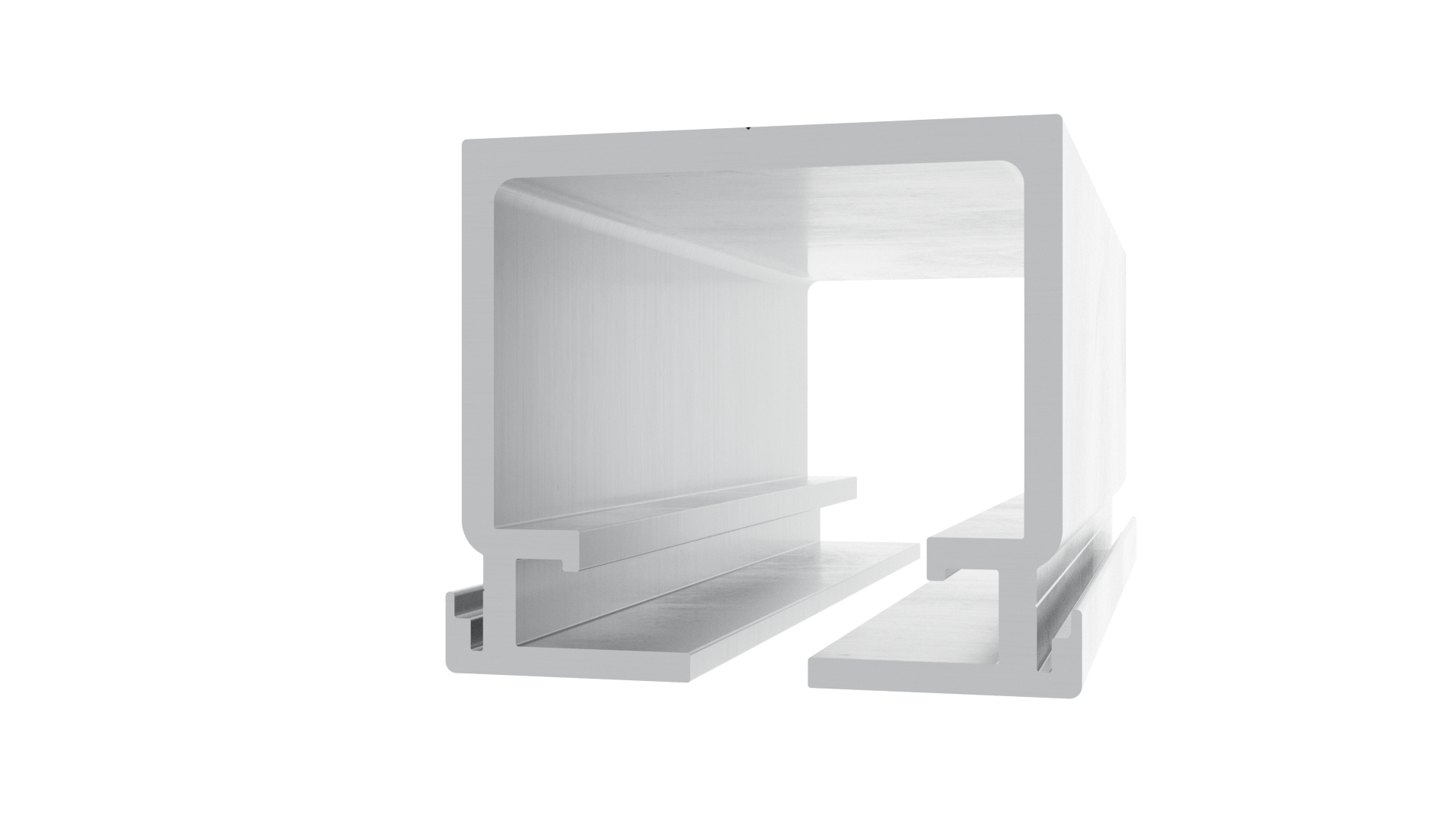

    Track 3
  • image

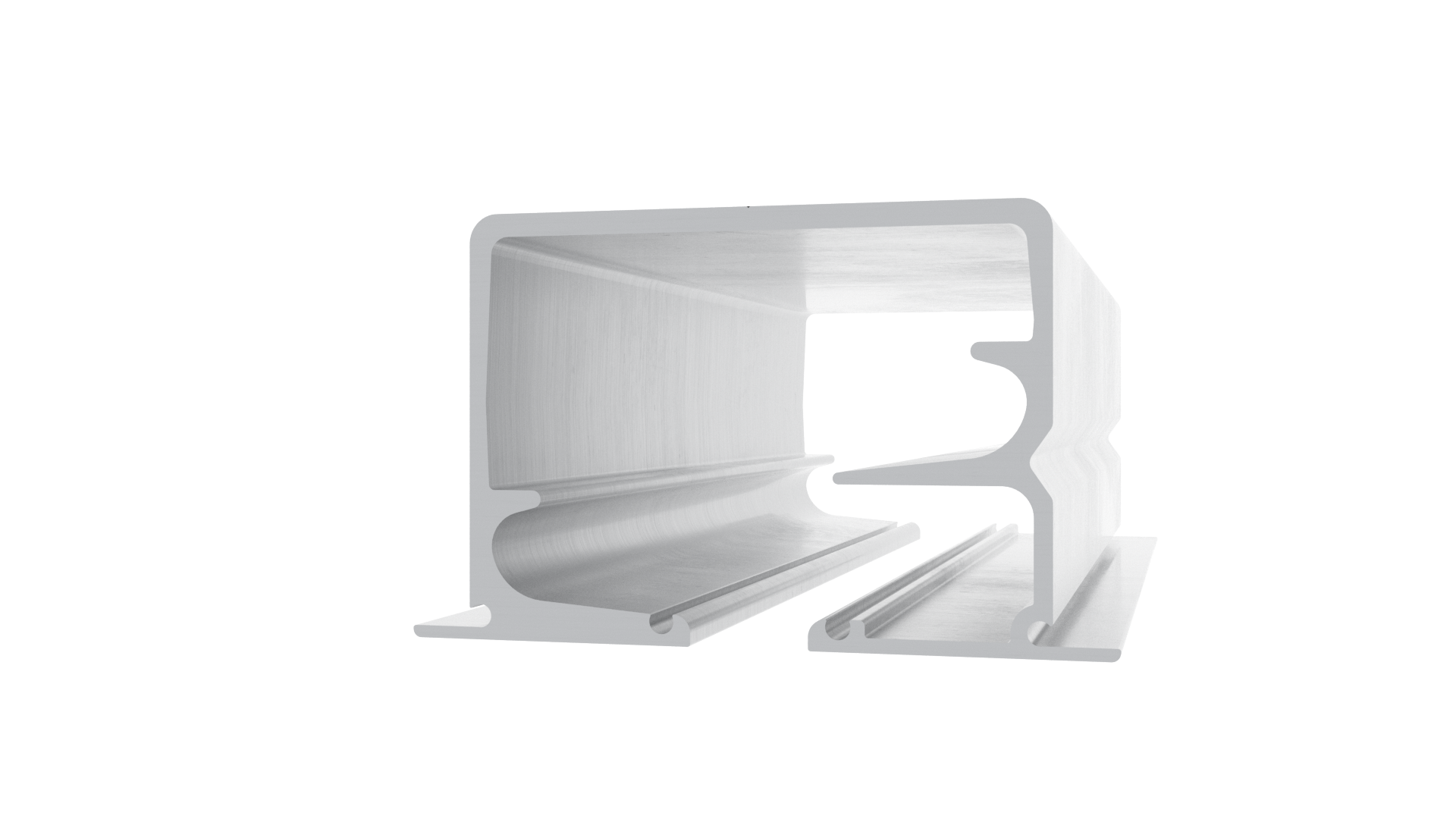

    Track 5
  • image

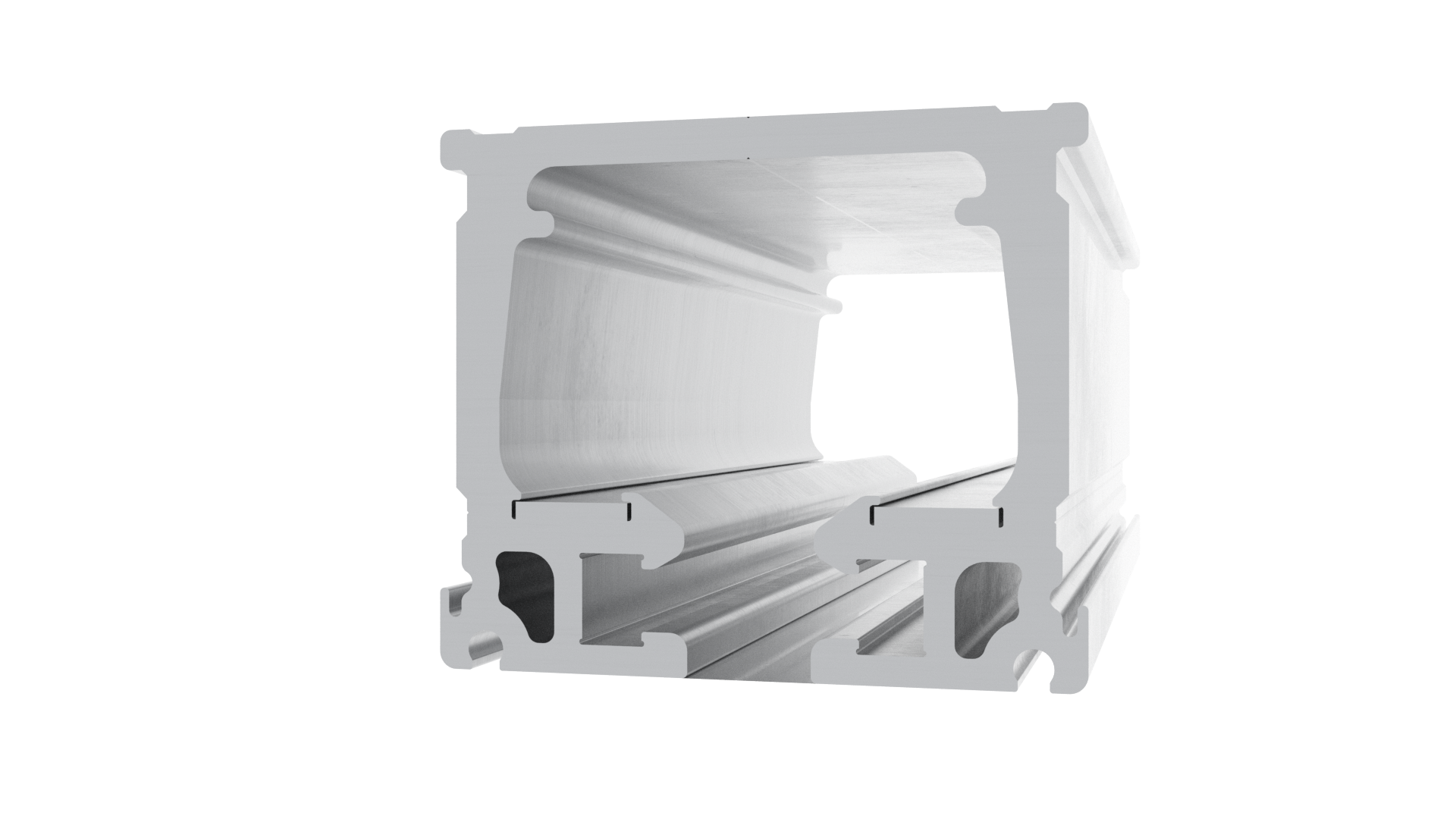

    Track 9
  • image

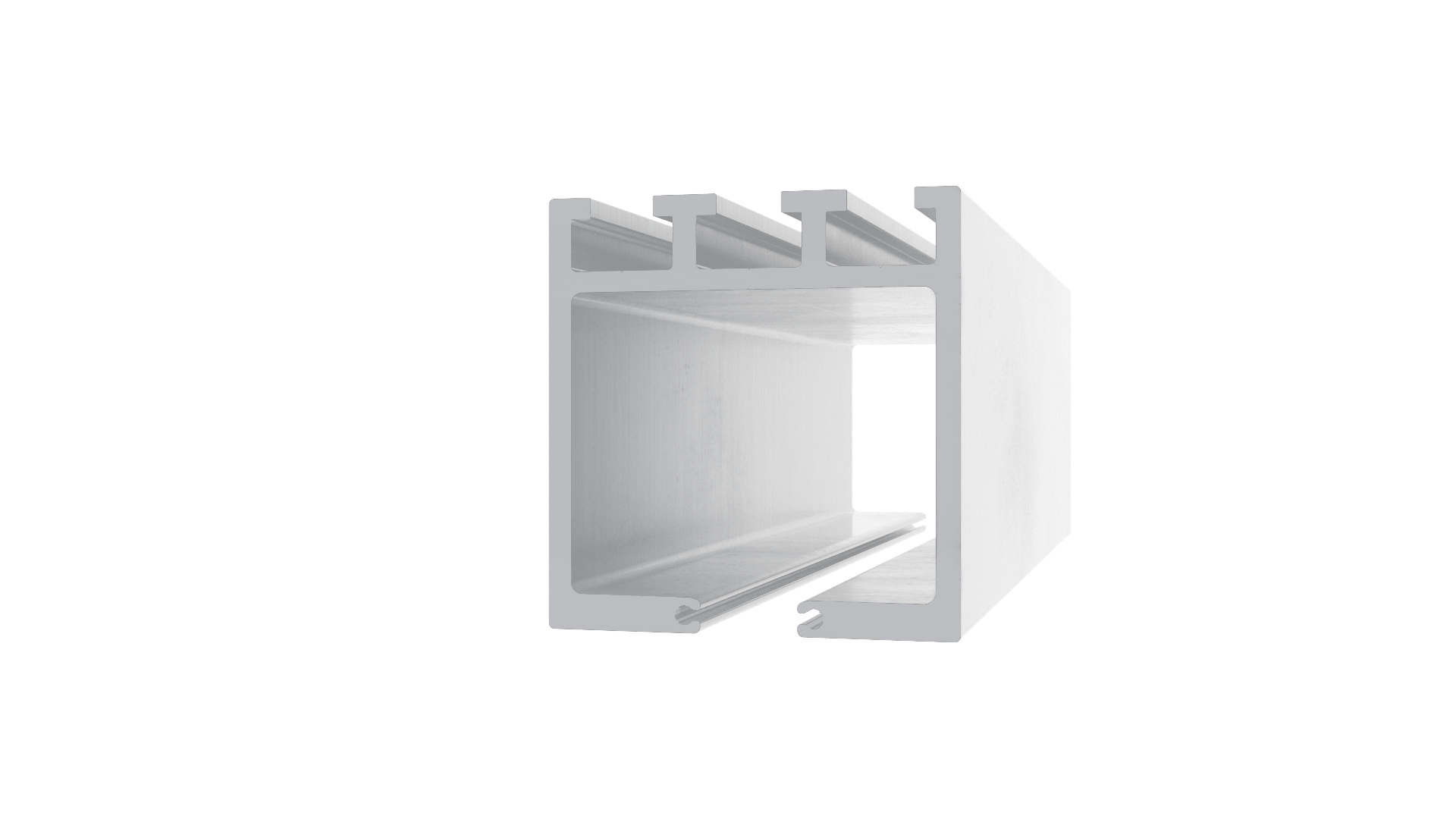

    Track 10
  • image

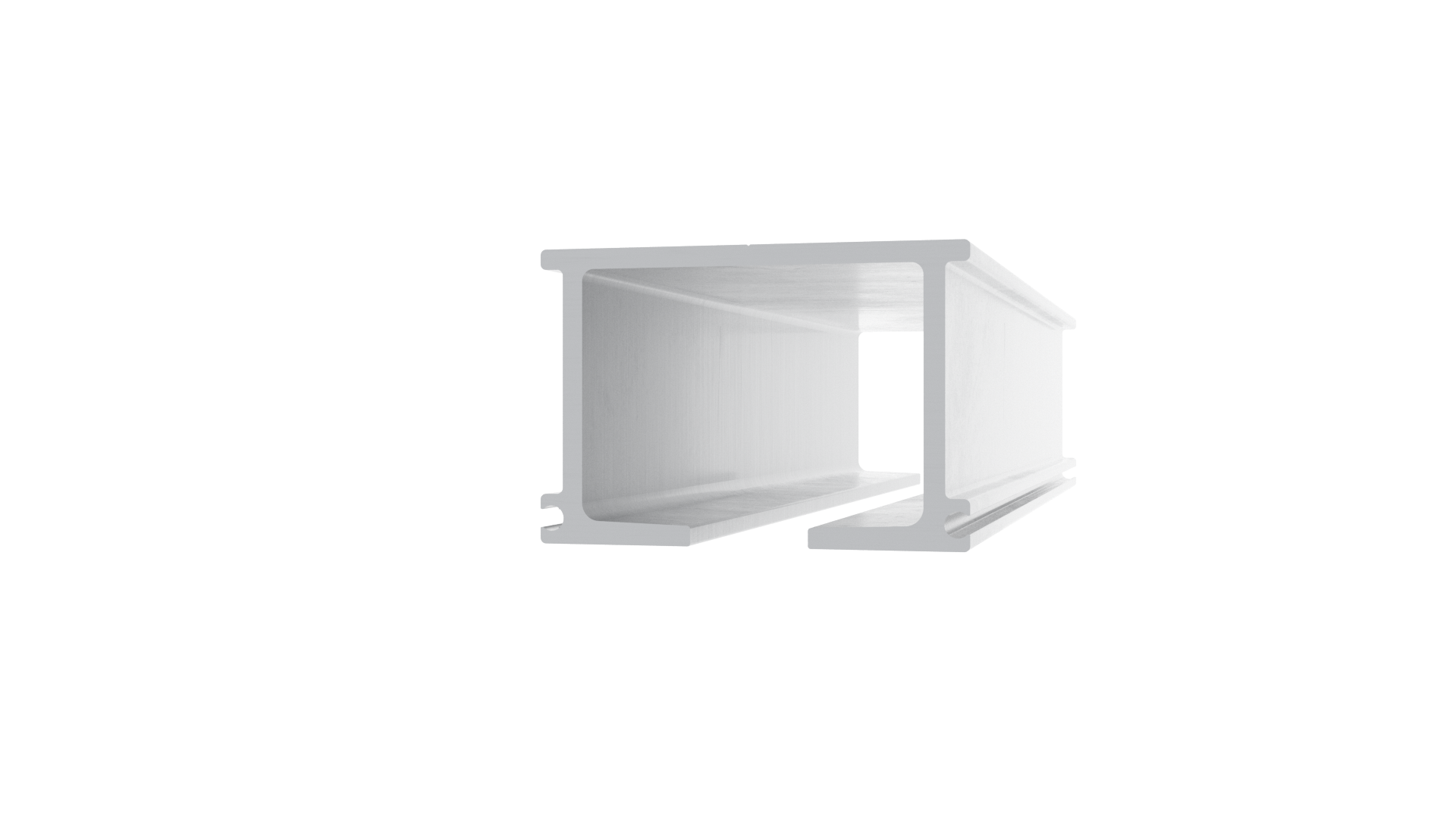

    Track 12
  • image

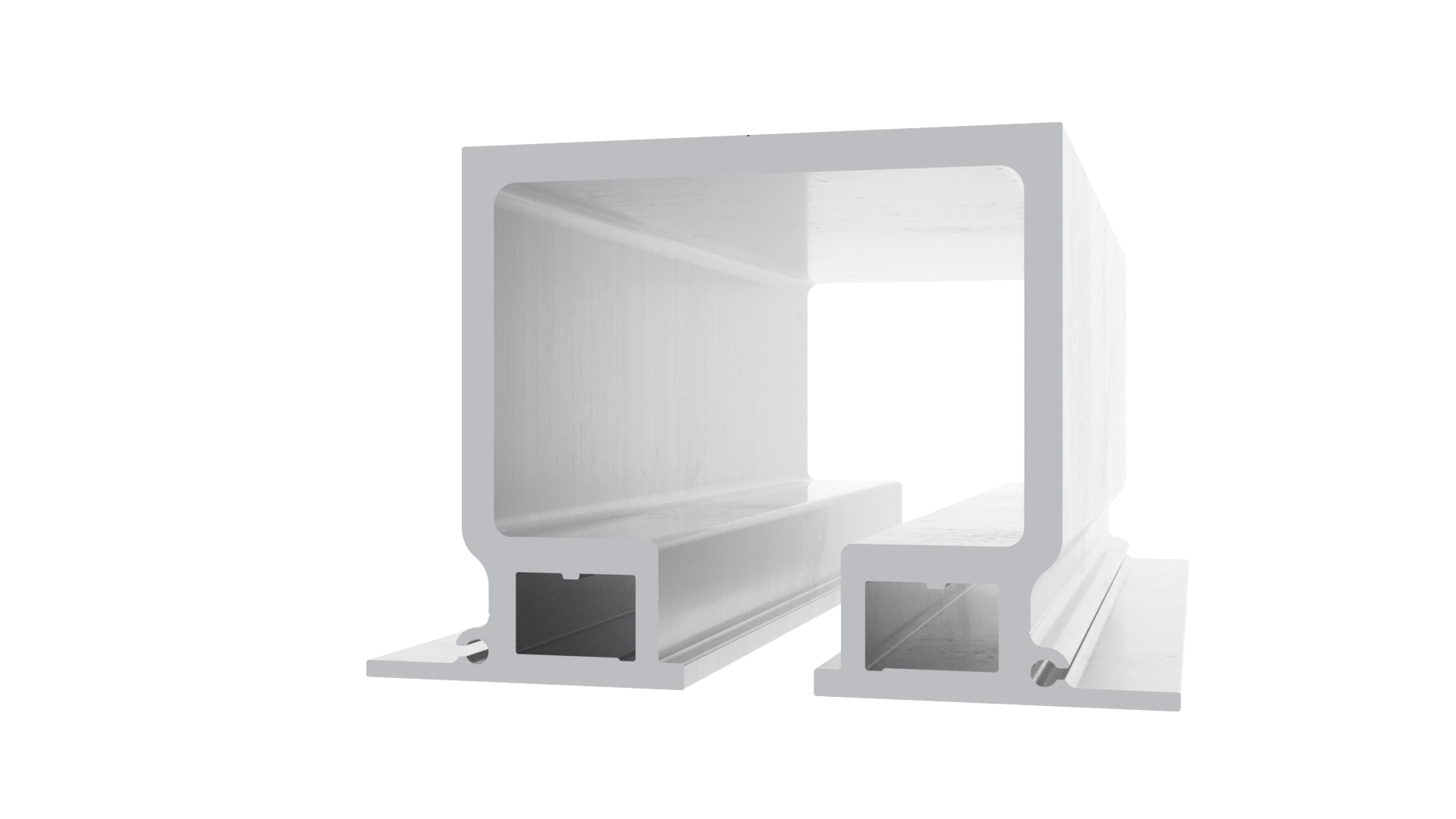

    Track 14
